Voron Tap
The Voron Tap is a revolutionary nozzle-based probe mechanism designed as a drop-in replacement for the Voron X-Carriage, offering extreme precision and reliability for bed leveling. This comprehensive kit from Tensor3D features high-durability blackened hardware and 440C stainless steel components for a sleek, long-lasting build.
Key Features
- Precision Probing: Uses the actual nozzle as the probe for zero-offset accuracy.
- Upgraded Materials: Features SS440C blackened linear rails and SS304 blackened fasteners for superior corrosion resistance and aesthetics.
- Plug-and-Play Electronics: Includes a V1/V2 OptoTap PCB with the sensor pre-soldered for easy installation.
- High-Strength Magnets: Uses N52 grade neodymium magnets for secure and consistent carriage return.
Specifications
| Type | Part | Material | Quantity |
|---|---|---|---|

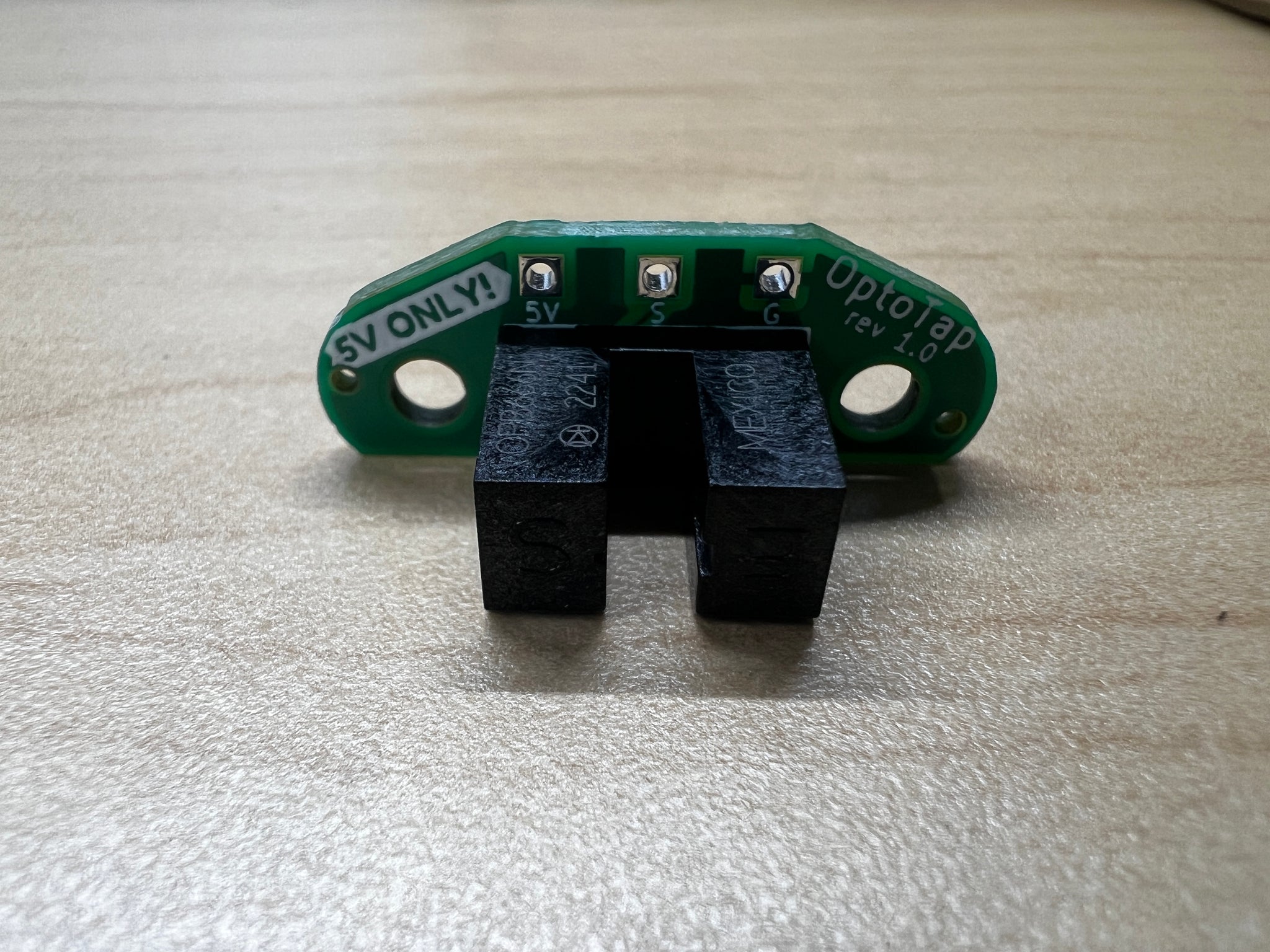

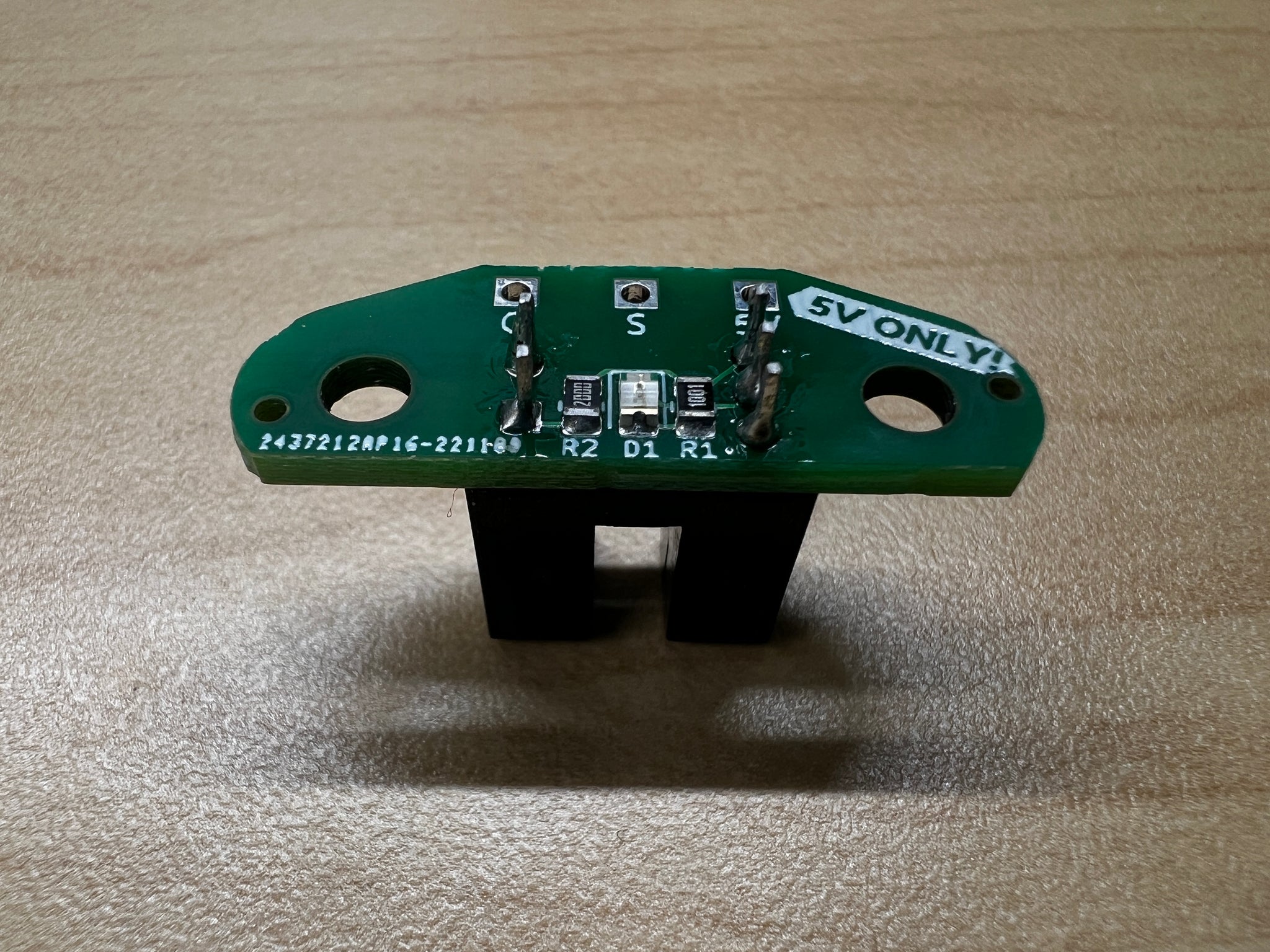

| Electronics | OptoTap PCB w/ Presoldered Sensor | FR4 | 1 |

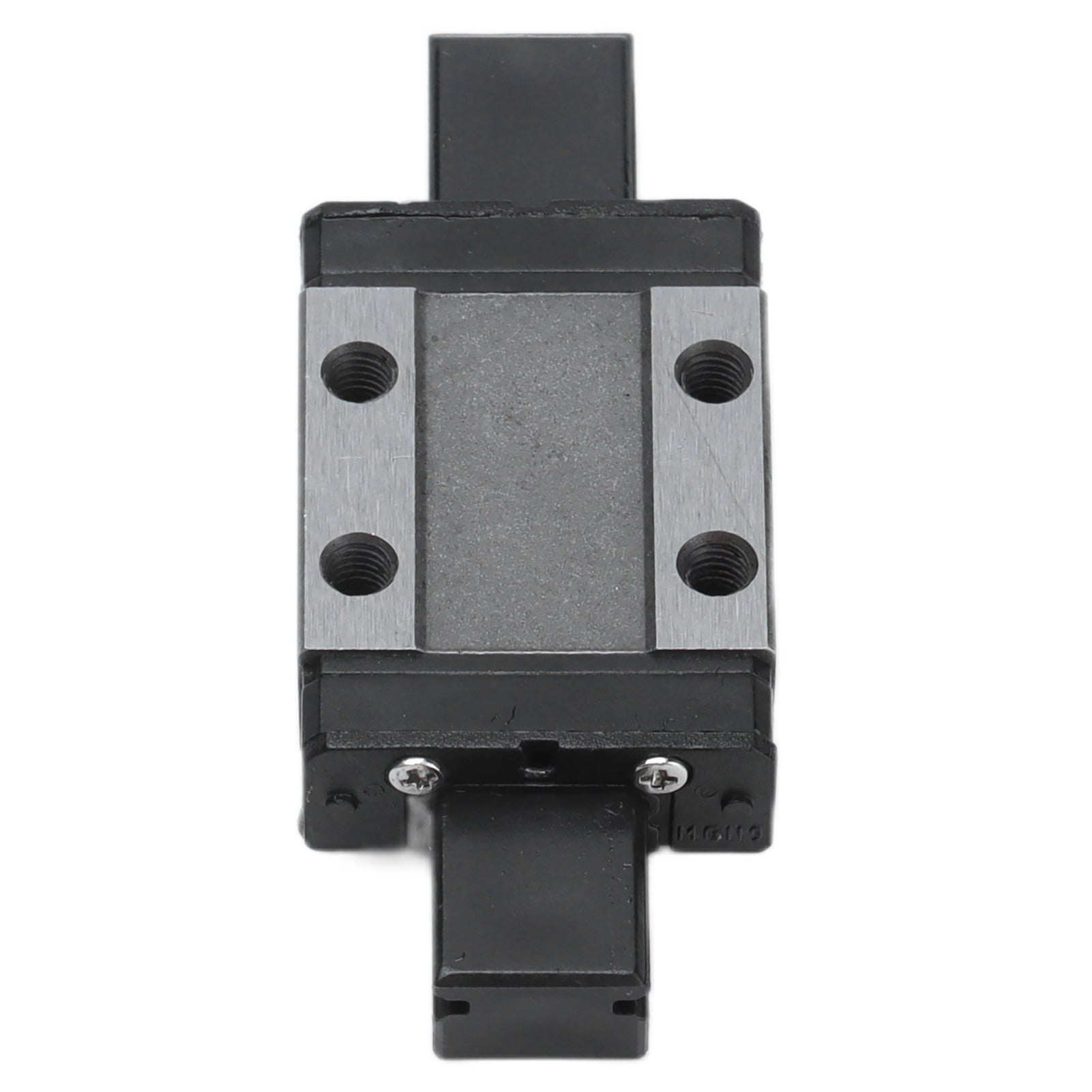

| Linear Rail | 50mm MGN9 Rail + MGN9H Cartridge | SS440C Blackened | 1 |
| Magnets | 6x3mm Round Magnet | N52 Neodymium (Black) | 3 |
| Fasteners | Heatset Inserts | Brass | 14 |
| Fasteners | M3 Hex Nut | SS304 Blackened | 3 |
| Fasteners | M3 Washer | SS304 Blackened | 8 |
| Fasteners | M3x20 / M3x16 / M3x12 / M3x8 / M3x6 SHCS | SS304 Blackened | 19 total |
| Fasteners | M3x10 / M3x6 BHCS | SS304 Blackened | 16 total |
| Fasteners | M3x6 FHCS | Alloy Steel | 4 |
