Voron V2 Motion Kit

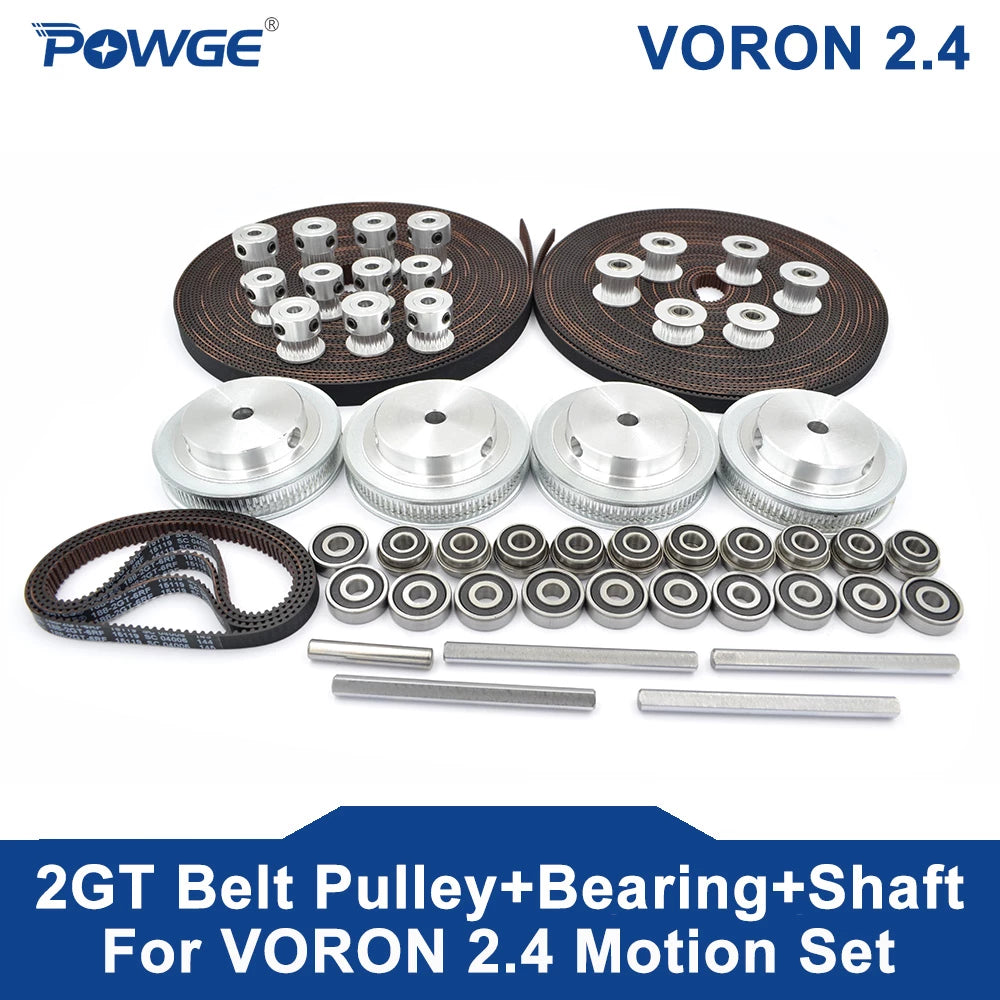

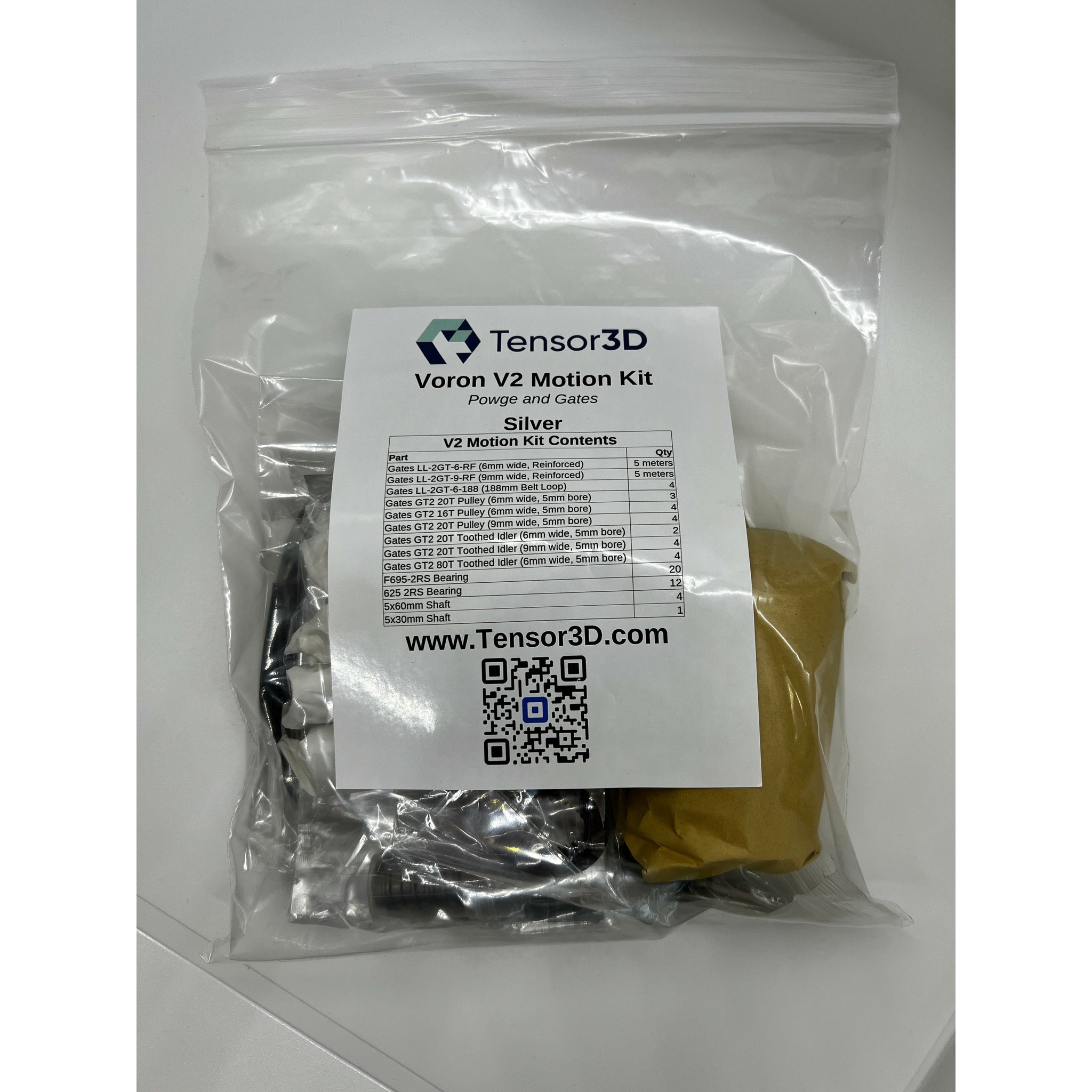

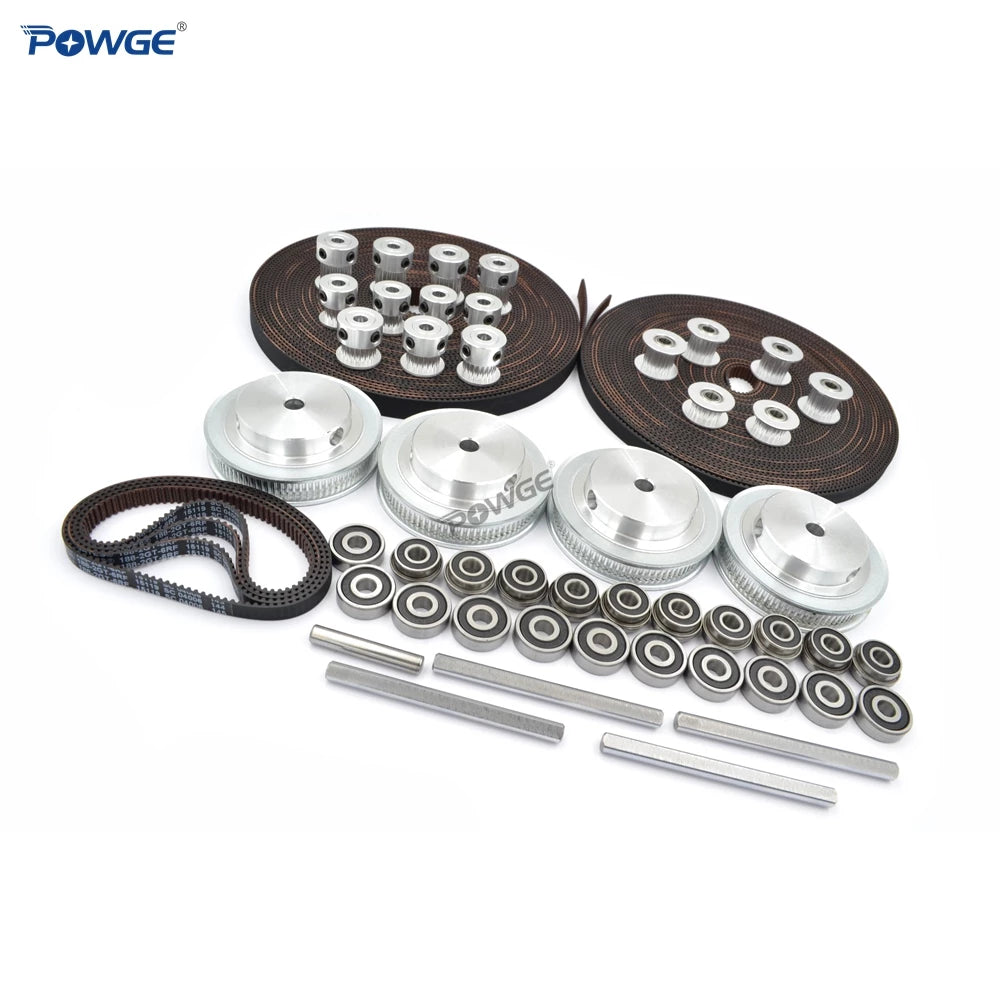

The Voron V2 Motion Kit provides the essential pulleys, idlers, and belts required for a complete Voron 2.4r1 or 2.4r2 build, utilizing genuine Gates components and Powge hardware for maximum reliability.
Key Features
- Genuine Gates Belting: Includes reinforced LL-2GT-6-RF and LL-2GT-9-RF belts for superior tensile strength and low stretch.
- High-Precision Powge Hardware: Includes all necessary 2GT pulleys and toothed idlers available in either black or silver finishes.
- Comprehensive Bearing Set: Features 32 high-quality 2RS-shielded bearings to ensure smooth gantry and Z-axis movement.
- Full Motion Set: Tailored specifically for the mechanical requirements of the Voron V2.4 motion system.
Specifications

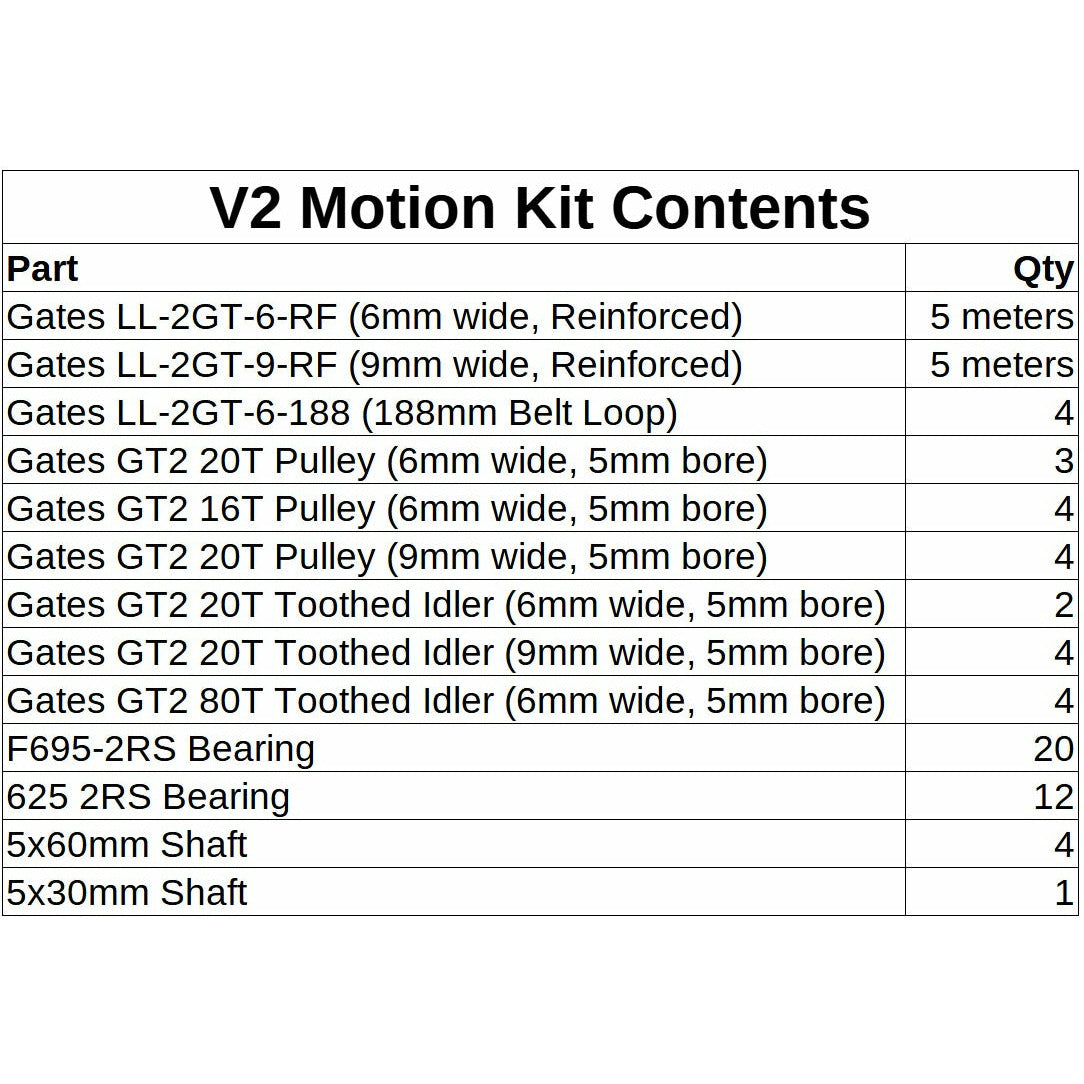

| Part Description | Quantity |
|---|---|
| Gates LL-2GT-6-RF (6mm wide, Reinforced) | 5 Meters |
| Gates LL-2GT-9-RF (9mm wide, Reinforced) | 5 Meters |
| Gates LL-2GT-6-188 (188mm Belt Loop) | 4 |

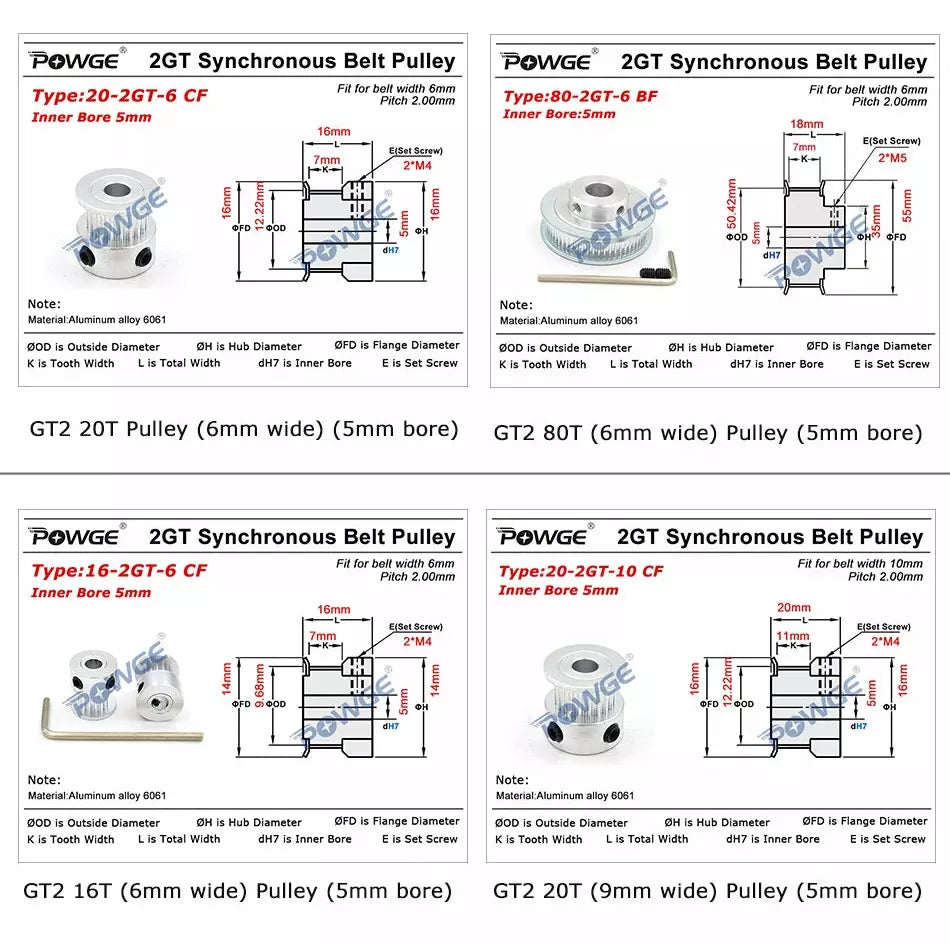

| Gates GT2 20T Pulley (6mm wide, 5mm bore) | 3 |
| Gates GT2 16T Pulley (6mm wide, 5mm bore) | 4 |
| Gates GT2 20T Pulley (9mm wide, 5mm bore) | 4 |
| Gates GT2 20T Toothed Idler (6mm wide, 5mm bore) | 2 |
| Gates GT2 20T Toothed Idler (9mm wide, 5mm bore) | 4 |
| Gates GT2 80T Toothed Idler (6mm wide, 5mm bore) | 4 |
| F695-2RS Bearing | 20 |
| 625 2RS Bearing | 12 |
| 5x60mm Shaft | 4 |
| 5x30mm Shaft | 1 |
