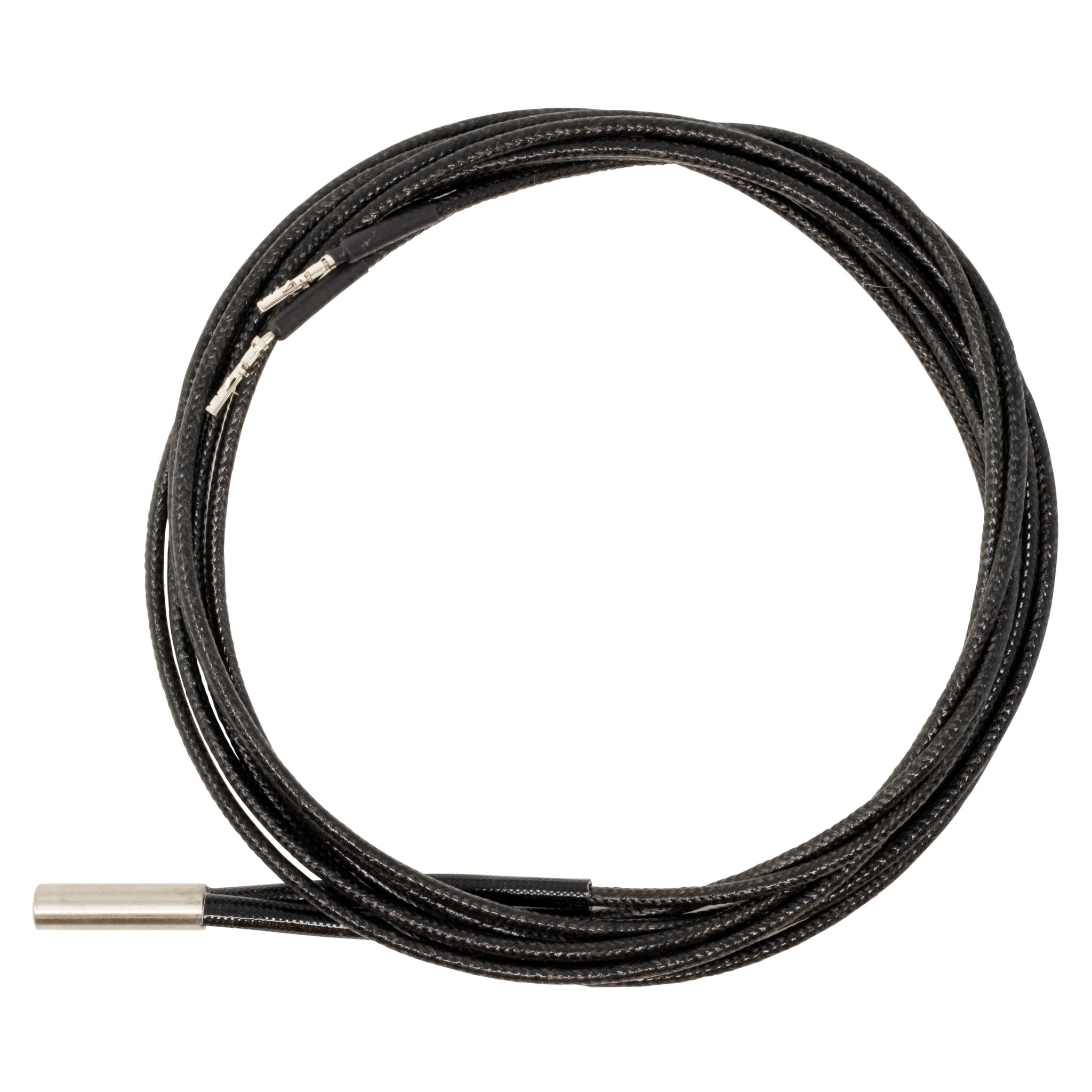

Slice Engineering 50W Heater Cartridge
The Slice Engineering 50W Heater Cartridge is a high-power modification designed to enable 3D printers to reach the temperatures required for engineering-grade materials like Nylon, PEEK, and Ultem.
Key Features
- High Power Density: 50W output allows for faster heat-up times and sustained high-temperature printing.
- Industrial Durability: Constructed with a 321 Stainless Steel (321SS) cartridge for improved longevity and corrosion resistance.
- Extended Reach: Features 1.2-meter leads, providing ample length to reach the control boards of large-scale machines.
- Versatile Compatibility: Precision-sized for standard 6mm H7 tolerance heater blocks; leads can be cut to length for custom connectors.
- Optimized Performance: For maximum thermal conductivity and accuracy, use in conjunction with Boron Nitride Paste.
Specifications
| Specification | Details |
|---|---|
| Power Output | 50W |
| Voltage Options | 12V or 24V |

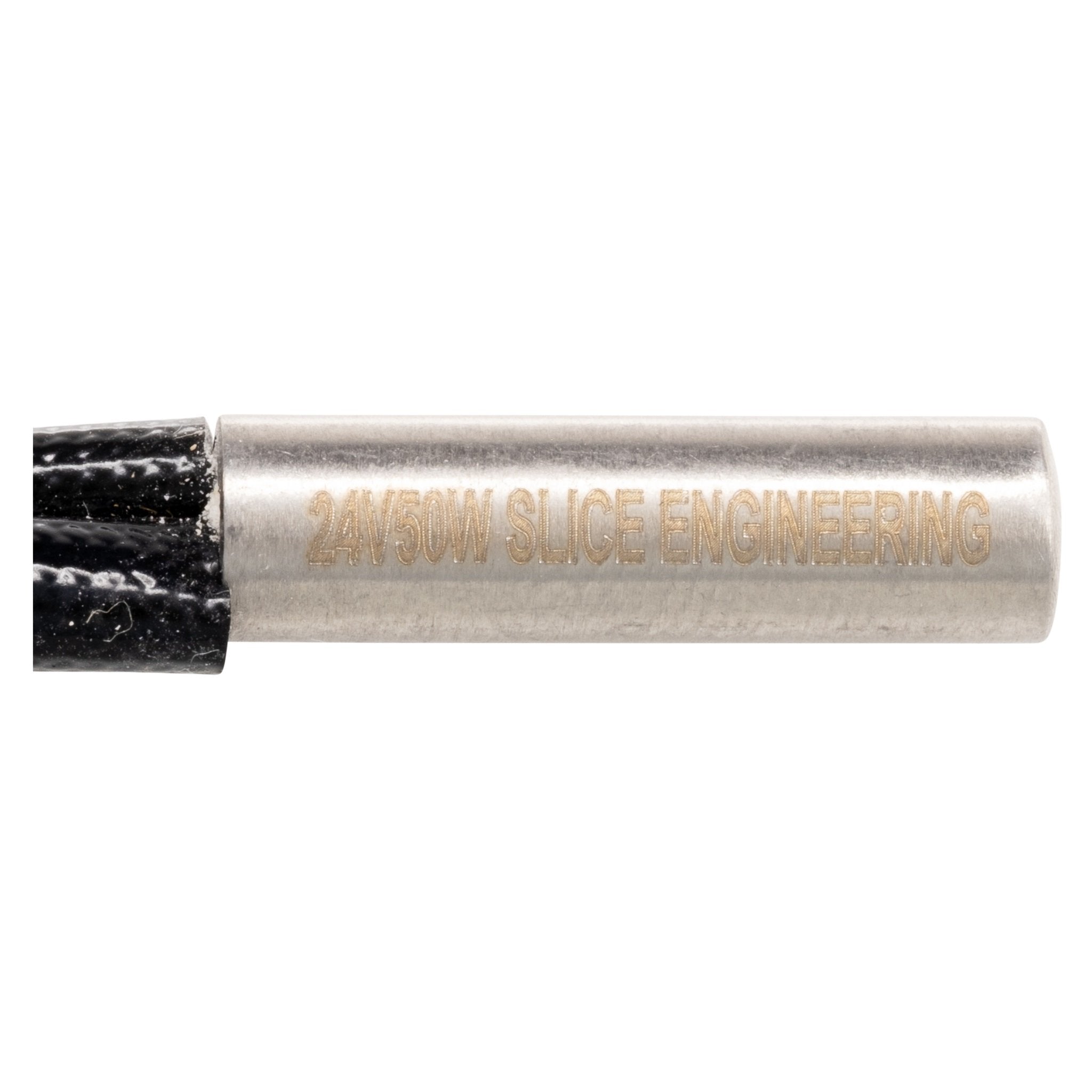

| Cartridge Material | 321 Stainless Steel |
| Cartridge Length | 22 mm |
| Cartridge Diameter | 6 mm (Fits H7 tolerance) |
| Lead Length | 1.2 m (3.9 ft) |
| Connectors (12V) | Molex MicroFit 3.0 (Includes extensions) |
| Connectors (24V) | Bare leads / No connectors |
Safety
Some desktop 3D printers may have firmware temperature limits or power supply constraints capped for safety reasons. Check your printer's electronics and firmware specifications to ensure compatibility with a 50W heater and your desired printing temperatures before installation.
