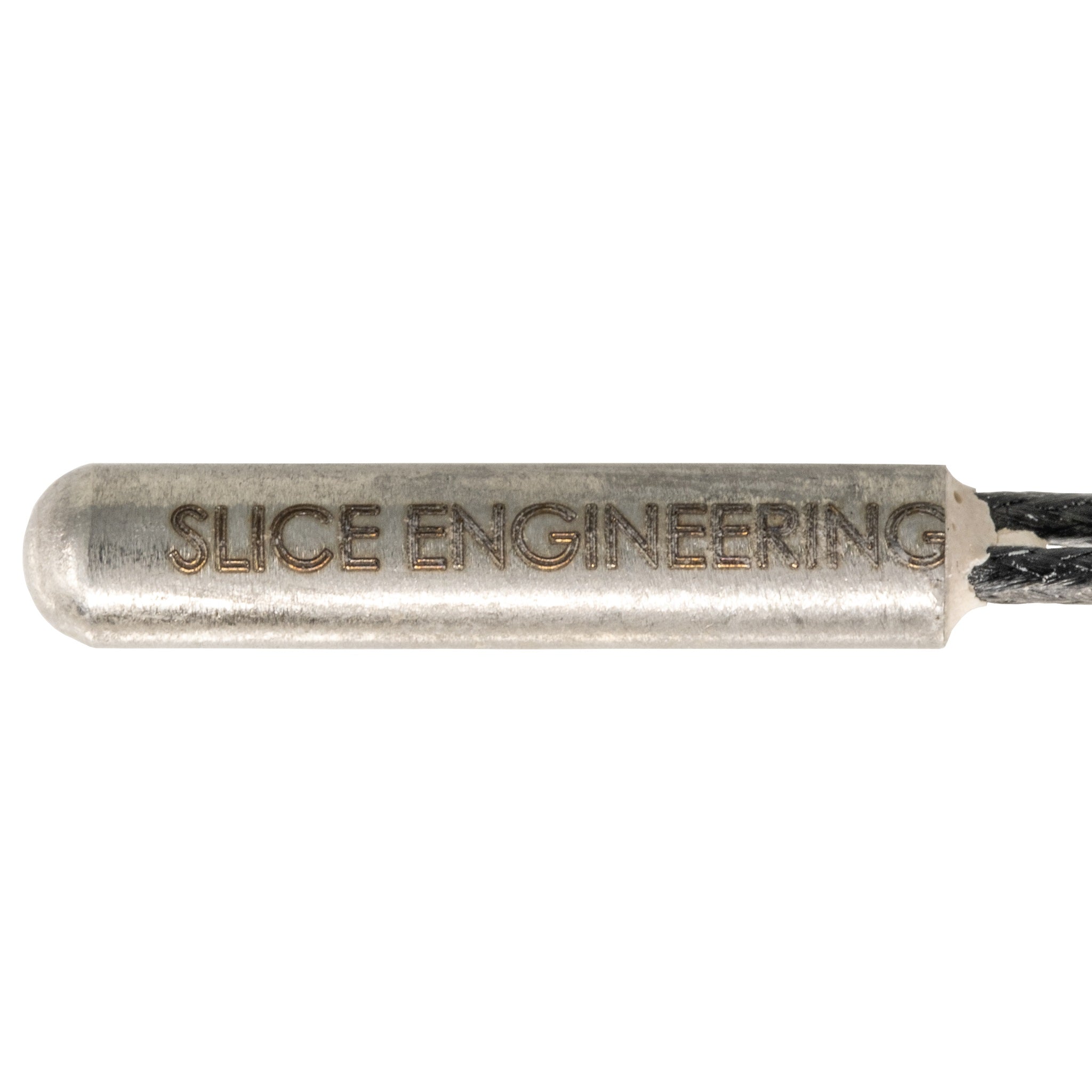

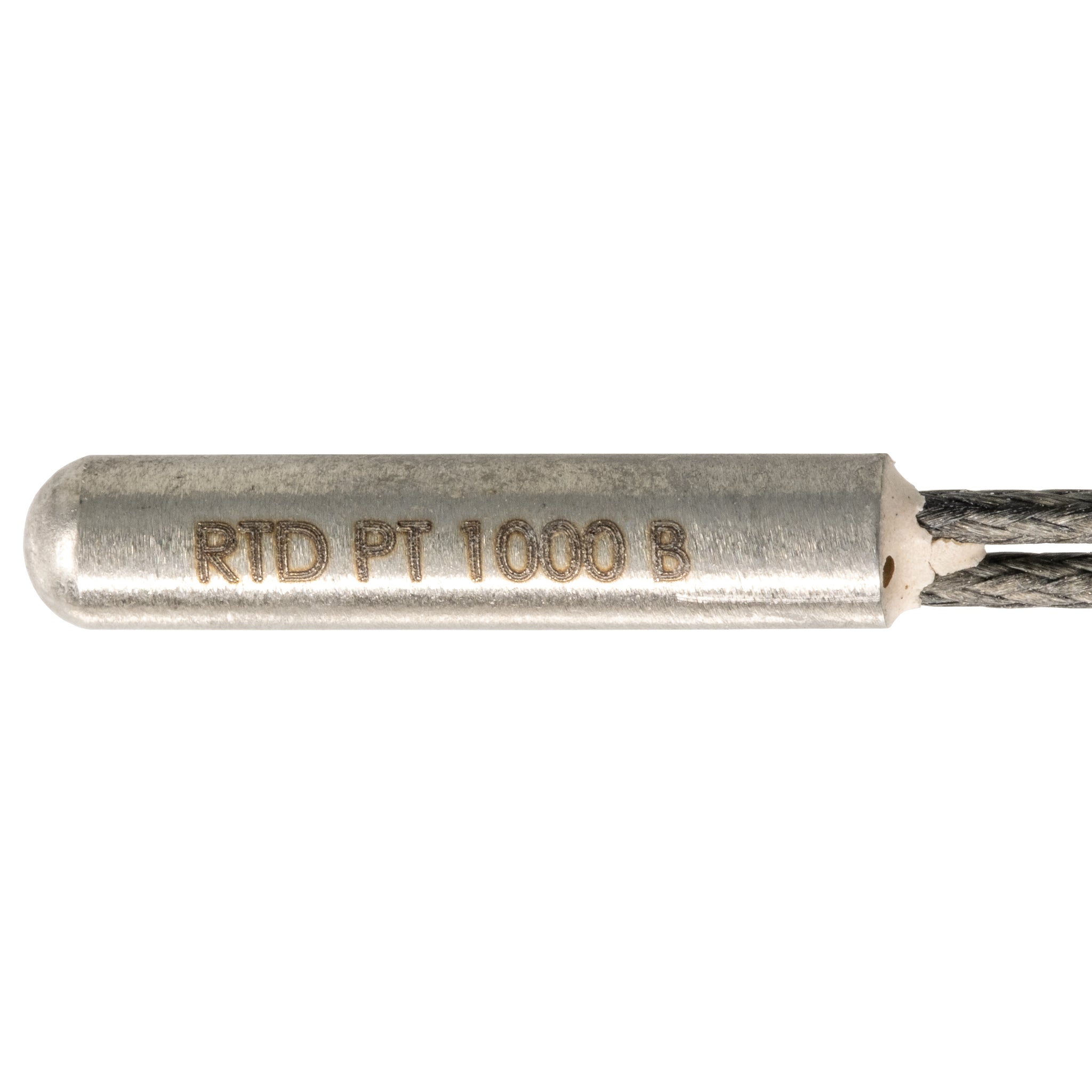

Slice Engineering RTD Pt1000
The Slice Engineering Pt1000 RTD (Resistance Temperature Detector) utilizes a platinum resistor to provide high-precision temperature sensing for Pt1000-compatible 3D printers and high-amperage controller boards.
Key Features
- Linear Response: Provides a totally linear temperature response for consistent accuracy across the entire sensing range.
- Eliminated Error: Virtually removes lead measurement errors common in Pt100 sensors, making it compatible with more controller boards without extra hardware.
- Wide Range: Reliable temperature monitoring from -50 °C up to 500 °C.
- Durable Construction: Features a robust thin-film sensor housed in a 300 series stainless steel cartridge for long-term durability.

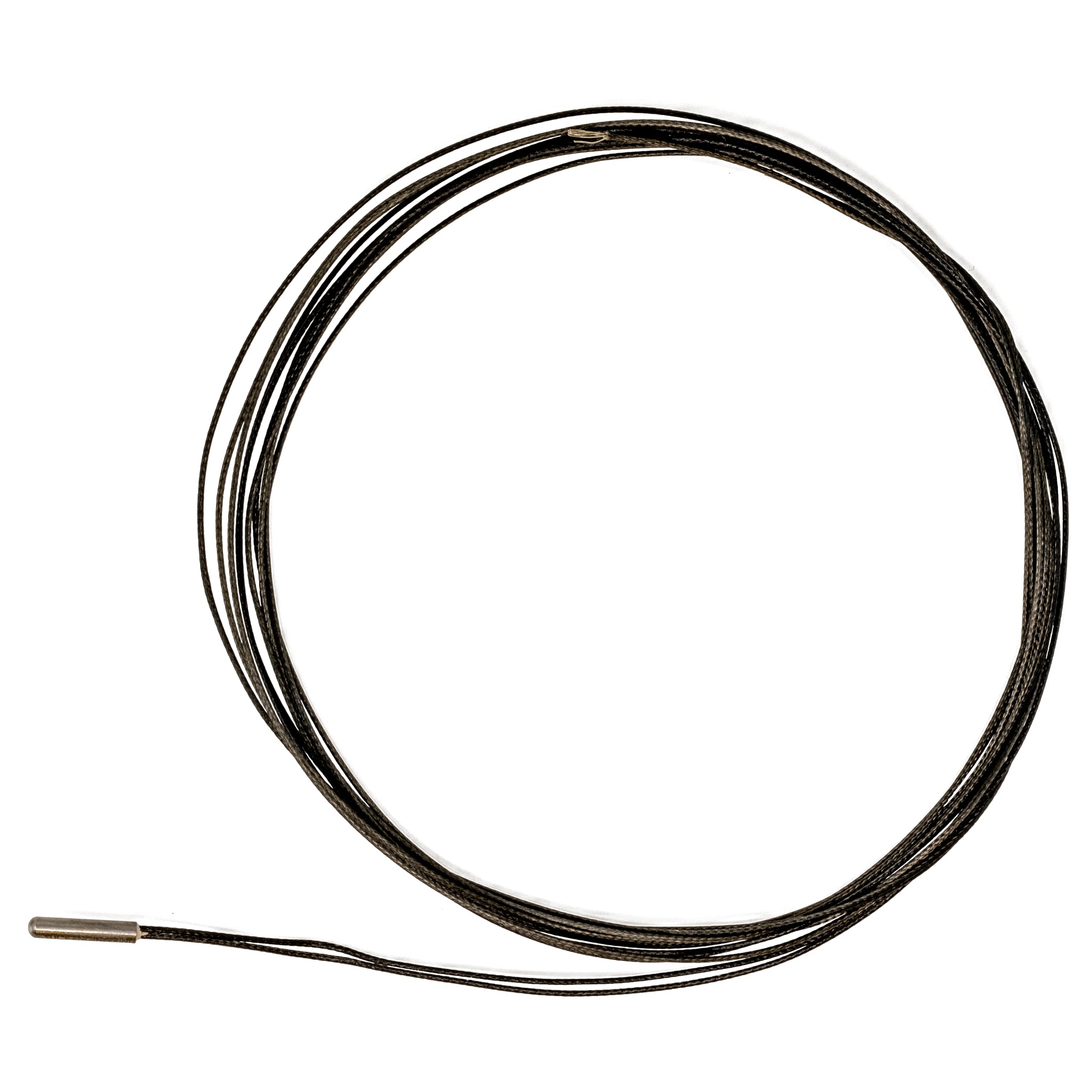

- Extensive Reach: Includes 2-meter bare leads for easy routing and adaptation to any 3D printer build.
Specifications
| Sensor Type | Pt1000 RTD (Platinum) |
|---|---|
| Temperature Range | -50 °C to 500 °C |
| Accuracy/Tolerance | IEC 60751 Class B (+/- 0.3 +0.005 |t| °C) |
| Lead Length | 2 meters (Bare leads) |
| Cartridge Material | 300 series stainless steel |
| Compatibility | Duet 3, high amperage boards, and Pt1000-compatible printers |
| Manufacturing | 100% Made in USA |
For optimal accuracy, it is recommended to use this sensor in conjunction with Boron Nitride Paste.
