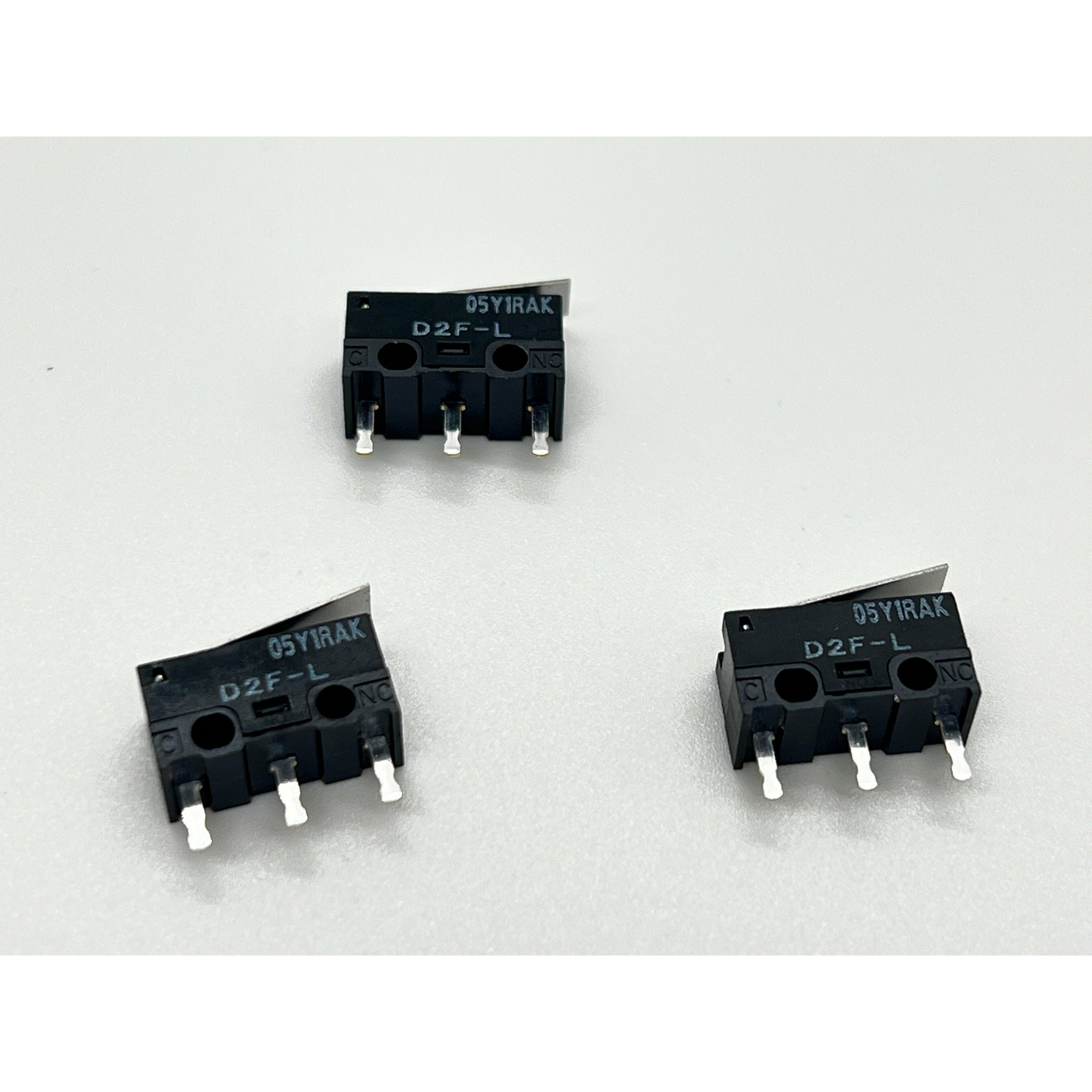

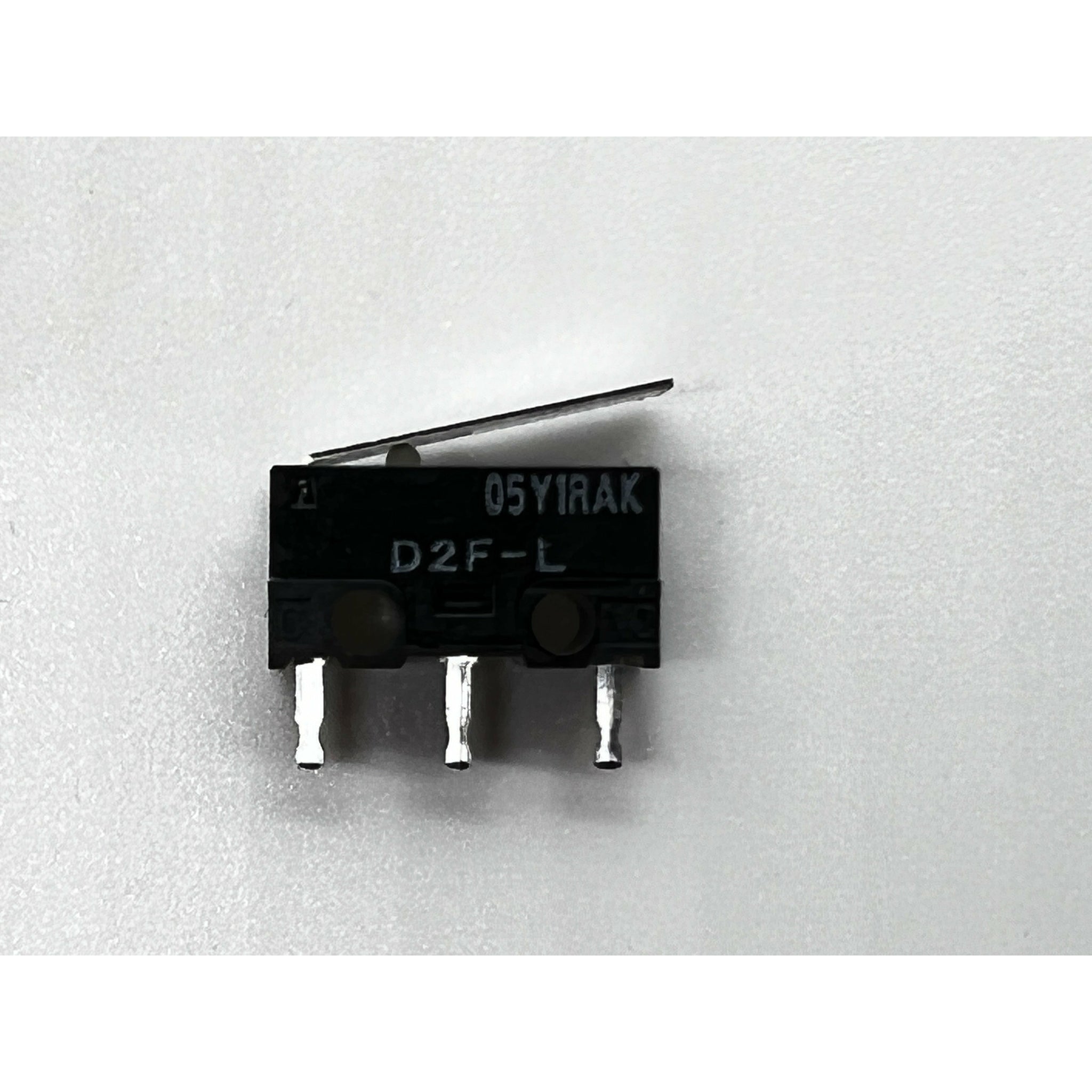

Omron D2F-L Microswitch
The Omron D2F-L is a high-reliability subminiature microswitch featuring an integrated lever actuator, commonly used for endstops and limit sensing in Voron 3D printers and other precision electronics.
Key Features
- Genuine Omron: High-quality switches sourced through authorized USA distributors.
- Integrated Lever: Smooth mechanical actuation with a low 1.47 N operating force.
- SPDT Configuration: Versatile Single Pole Double Throw contact form for flexible wiring.
- Durable Design: Robust PCB mount construction with a wide operating temperature range.
Specifications
| Attribute | Standard |
|---|---|
| Contact Form | SPDT |
| Switch Function | ON - (OFF), OFF - (ON) |
| Current Rating | 3 A |
| Voltage Rating AC | 125 VAC |
| Voltage Rating DC | 30 VDC |
| Operating Force | 1.47 N |
| Termination Style | Solder Pin |
| Mounting Style | PCB Mount |
| IP Rating | IP40 |
| Temperature Range | -40°C to +85°C |
