Voron Trident Fastener Kit rev A (ss304 silver) (discontinued)
This comprehensive fastener kit provides all necessary hardware for Voron Trident 3D printer builds of any size. Constructed primarily from high-quality SS304 stainless steel, this kit includes a 10-20% buffer over standard BOM requirements to ensure you have replacements for any lost or damaged components during assembly.
Key Features
- Universal Compatibility: Includes hardware for all Voron Trident build sizes.
- Corrosion Resistance: Primary fasteners are made from durable SS304 stainless steel.
- Buffered Quantities: Contains 10-20% more parts than the standard BOM requirements.
- High-Quality Inserts: Includes genuine brass heat-set inserts for reliable plastic-to-metal threading.

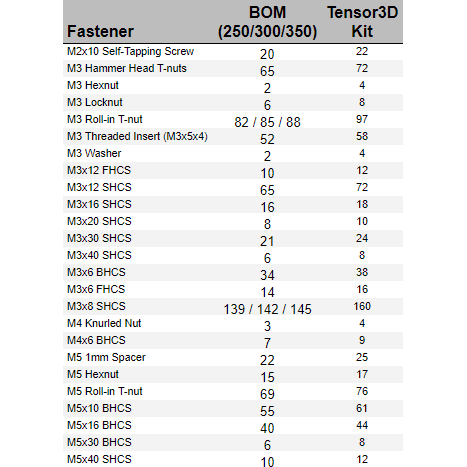

Specifications
| Fastener Specification | BOM Qty | Tensor3D Kit Qty |
|---|---|---|
| M3x6 BHCS | 34 | 38 |
| M4x6 BHCS | 7 | 9 |
| M5x10 BHCS | 55 | 61 |
| M5x16 BHCS | 40 | 44 |
| M5x30 BHCS | 6 | 8 |
| M3x12 FHCS | 10 | 12 |
| M3x6 FHCS | 14 | 16 |
| M3 Hammer Head T-nuts | 65 | 72 |

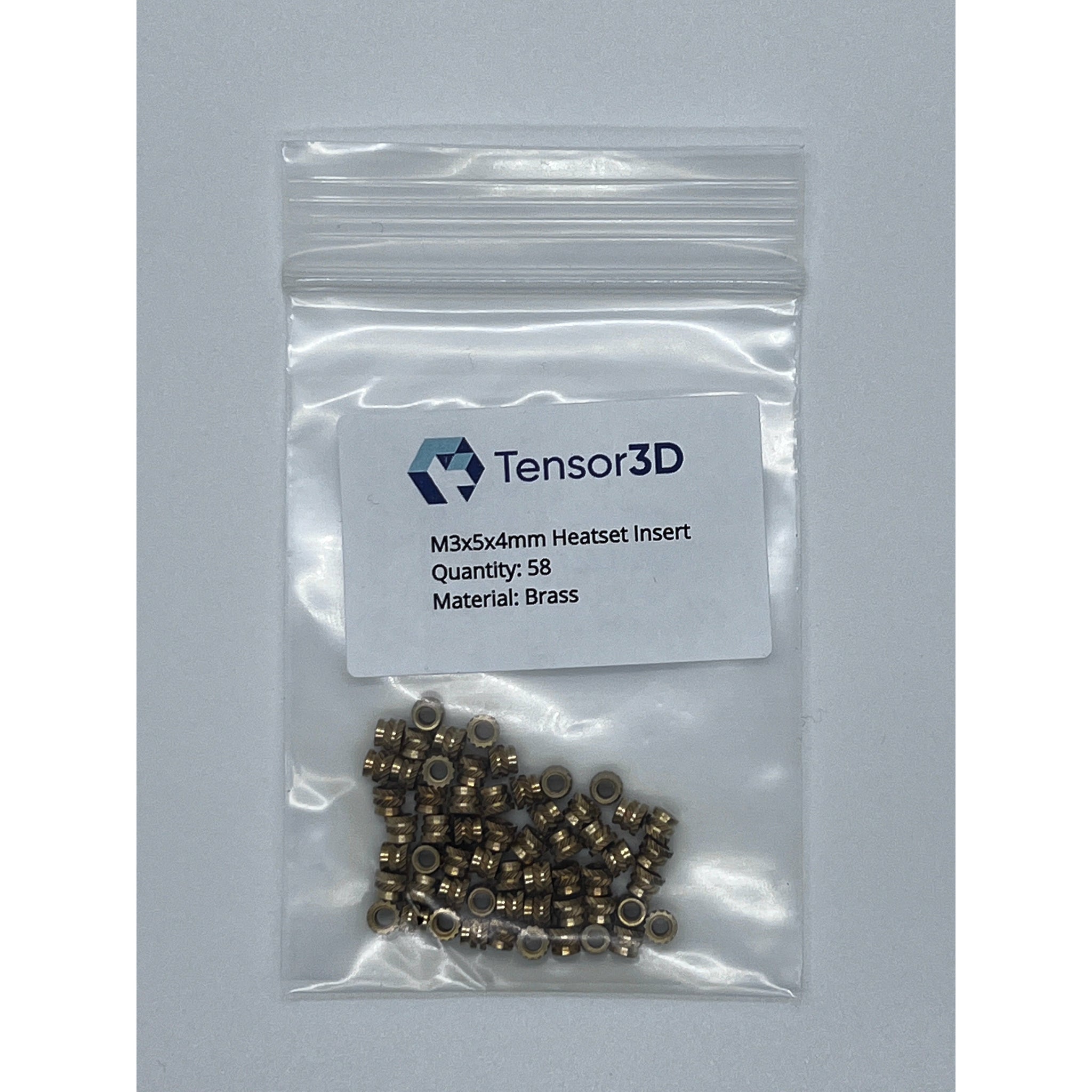

| M3 Threaded Insert (M3x5x4) | 52 | 58 |
| M3 Hexnut | 2 | 4 |
| M5 Hexnut | 15 | 17 |
| M3 Locknut | 6 | 8 |
| M3 Roll-in T-nut (Carbon Steel) | 88 | 97 |
| M5 Roll-in T-nut (Carbon Steel) | 69 | 76 |
| M2x10 Self-Tapping Screw | 20 | 22 |
| M3x12 SHCS | 65 | 72 |
| M3x16 SHCS | 16 | 18 |
| M3x20 SHCS | 8 | 10 |
| M3x30 SHCS | 21 | 24 |
| M3x40 SHCS | 6 | 8 |
| M3x8 SHCS | 145 | 160 |
| M5x40 SHCS | 10 | 12 |
| M4 Knurled Nut | 3 | 4 |
| M3 Washer | 2 | 4 |
| M5 1mm Spacer | 22 | 25 |
Note: Standard roll-in t-nuts provided in this kit may not be compatible with LDO frames.
