Tensor3D Voron High Performance V0.1/V0.2 Motion Kit
The Tensor3D High Performance Motion Kit is an elite hardware upgrade designed for Voron V0.1 and V0.2 3D printers, engineered to withstand the rigorous demands of high-temperature enclosed printing.
Key Features
- EPDM Belts: Gates EPDM material provides superior heat resistance and durability compared to standard motion belts.
- Hybrid Ceramic Bearings: Includes ABEC7 F623-RS bearings for smoother, high-speed motion and increased mechanical longevity.
- Precision Pulleys: Finished in black for a sleek aesthetic while maintaining strict tolerances.
- Application Ready: Specifically curated with quantities required for the compact Voron V0 platform.
Specifications

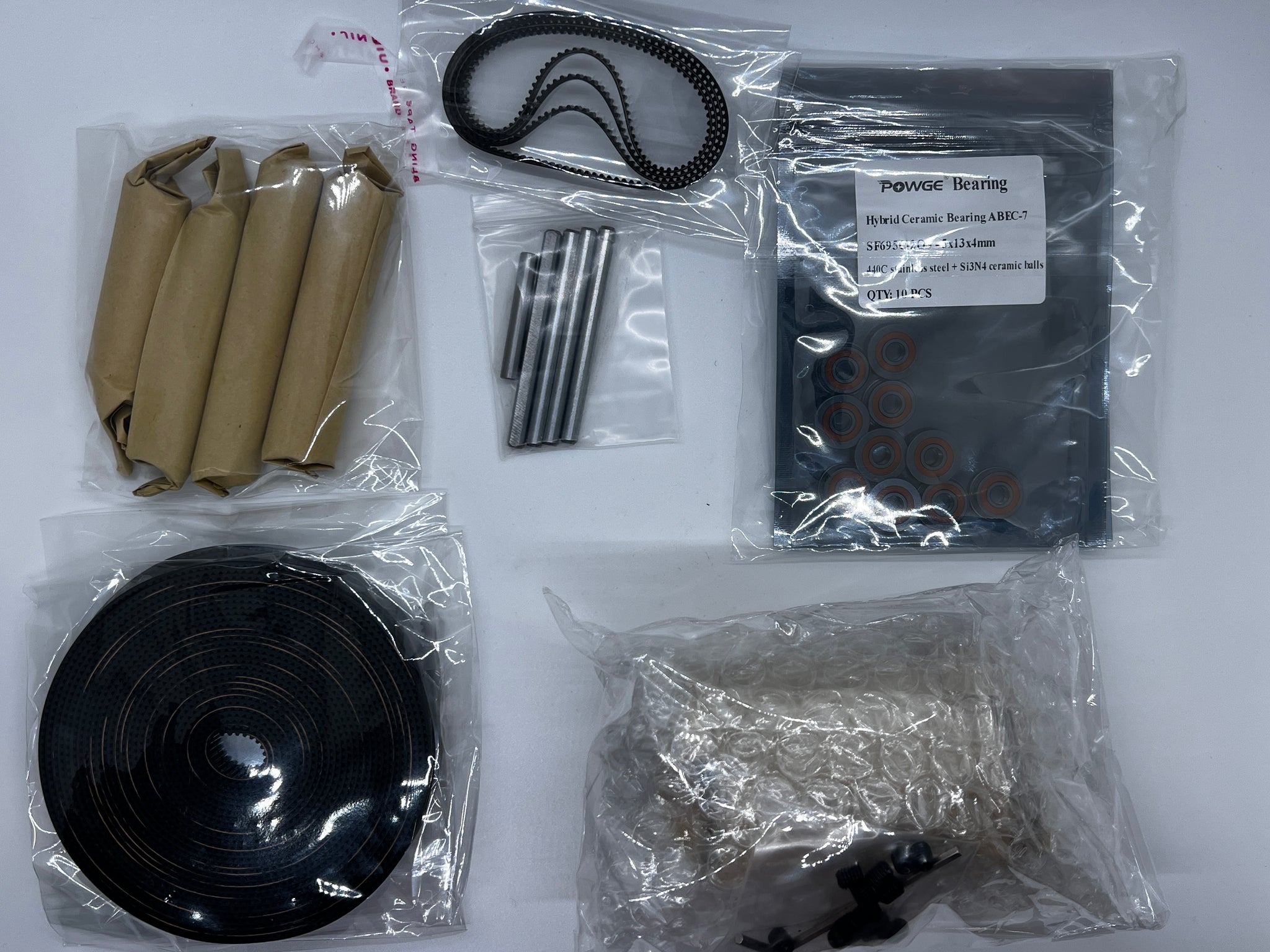

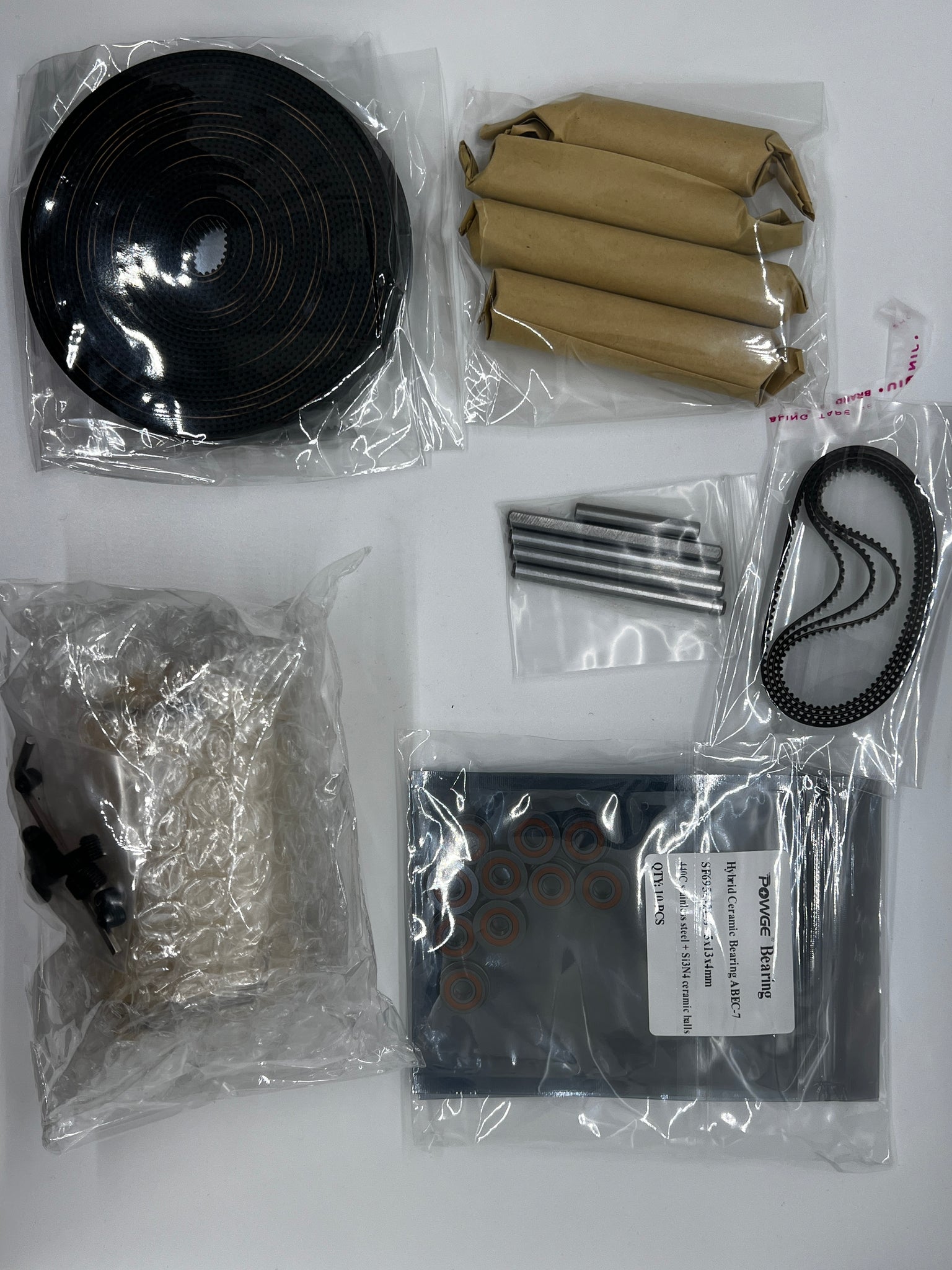

| Part | Qty |
|---|---|

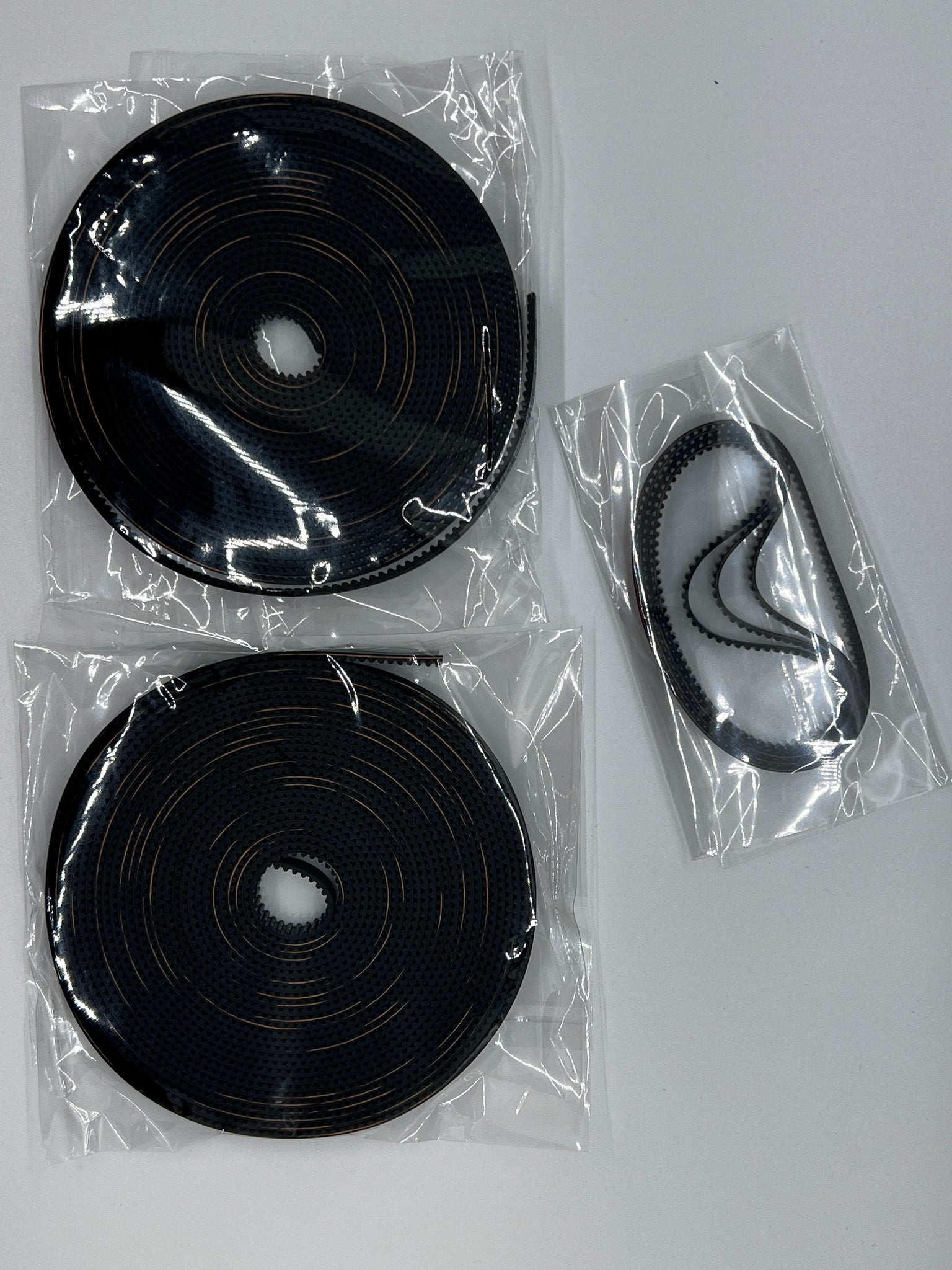

| Gates LL-2GT-6-EPDM (6mm wide, Reinforced) | 3 Meters |
| GT2 20T (6mm wide) Pulley (5mm bore) - Black | 2 |
| T8 Flange Nut | 1 |

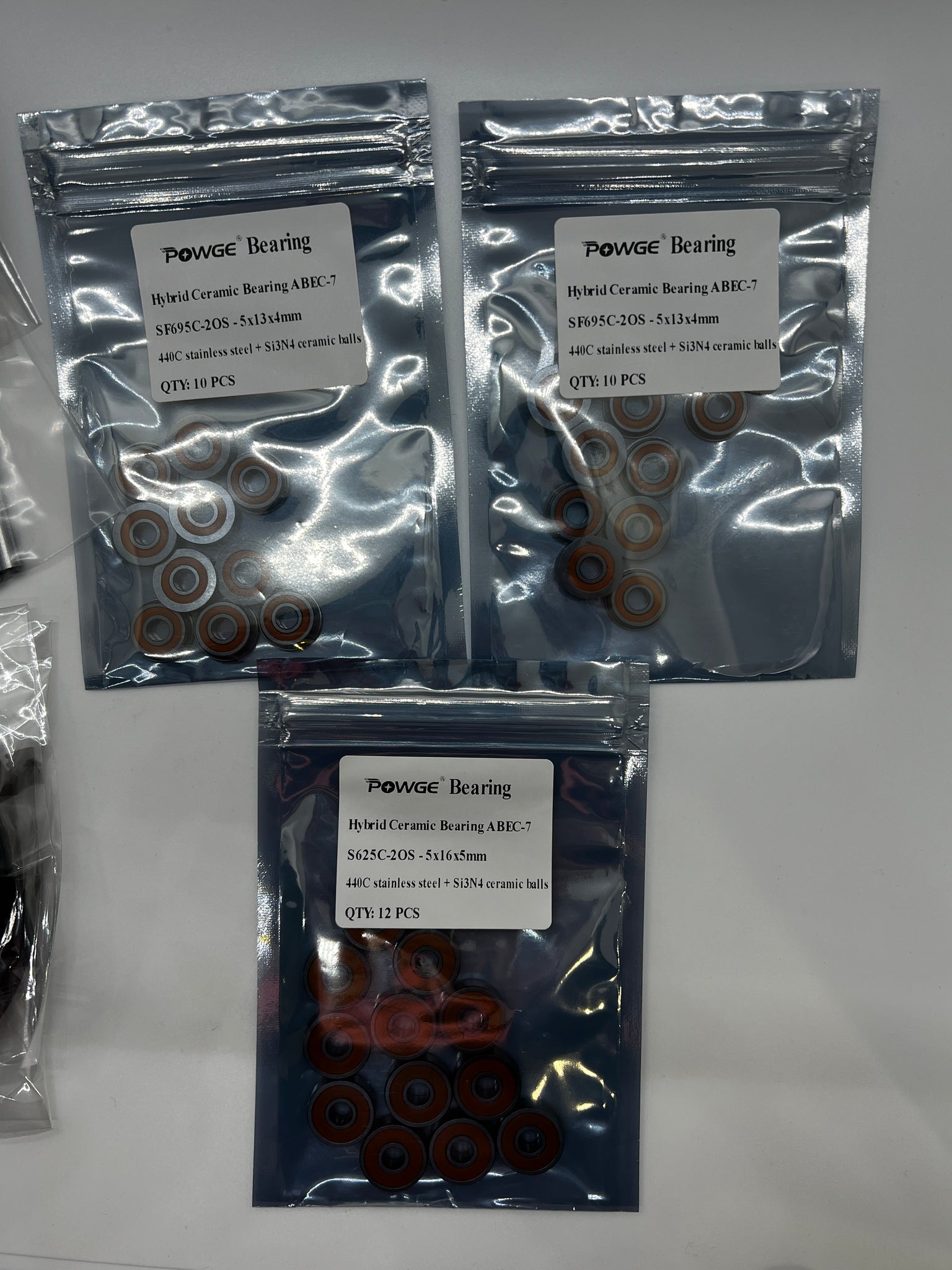

| F623-RS Bearing - ABEC7 Hybrid Ceramic | 24 |
